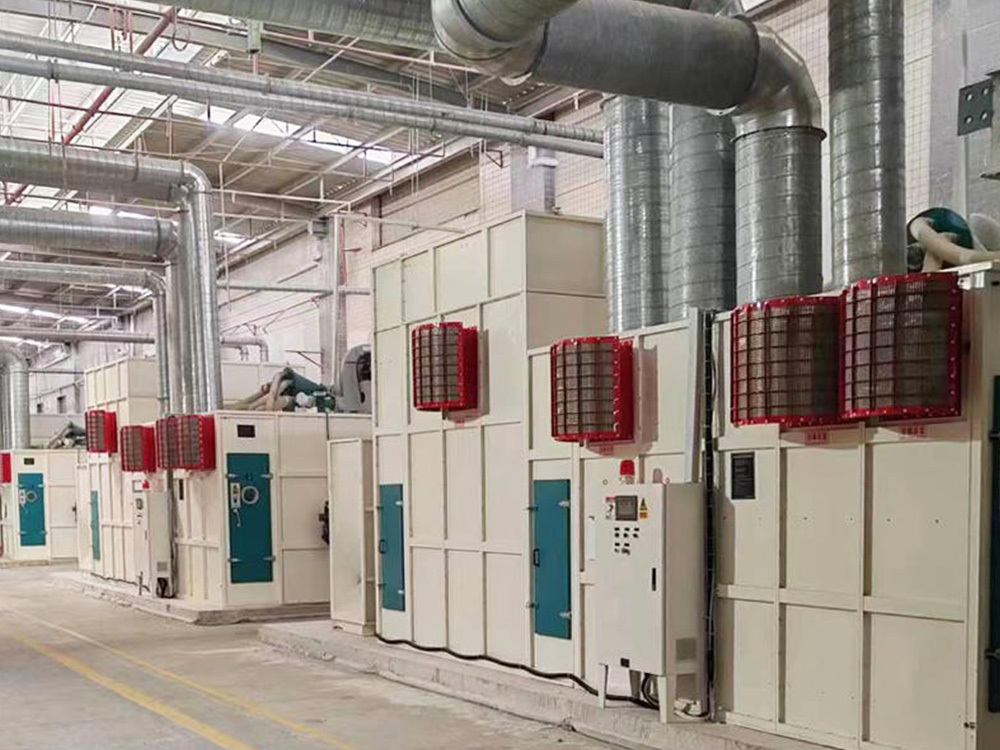

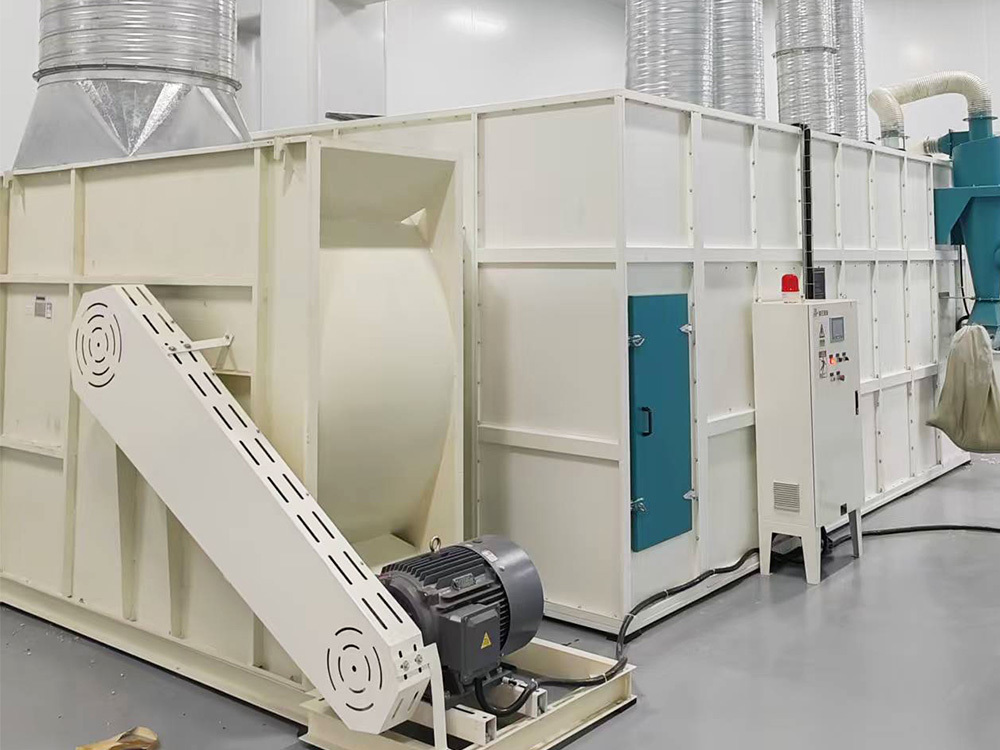

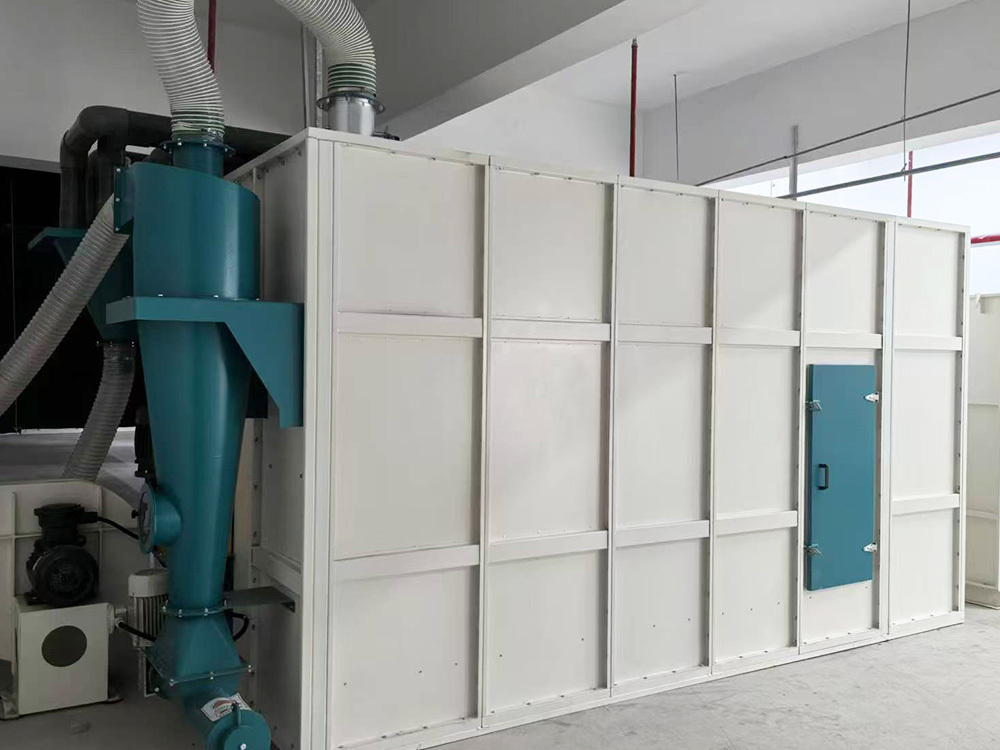

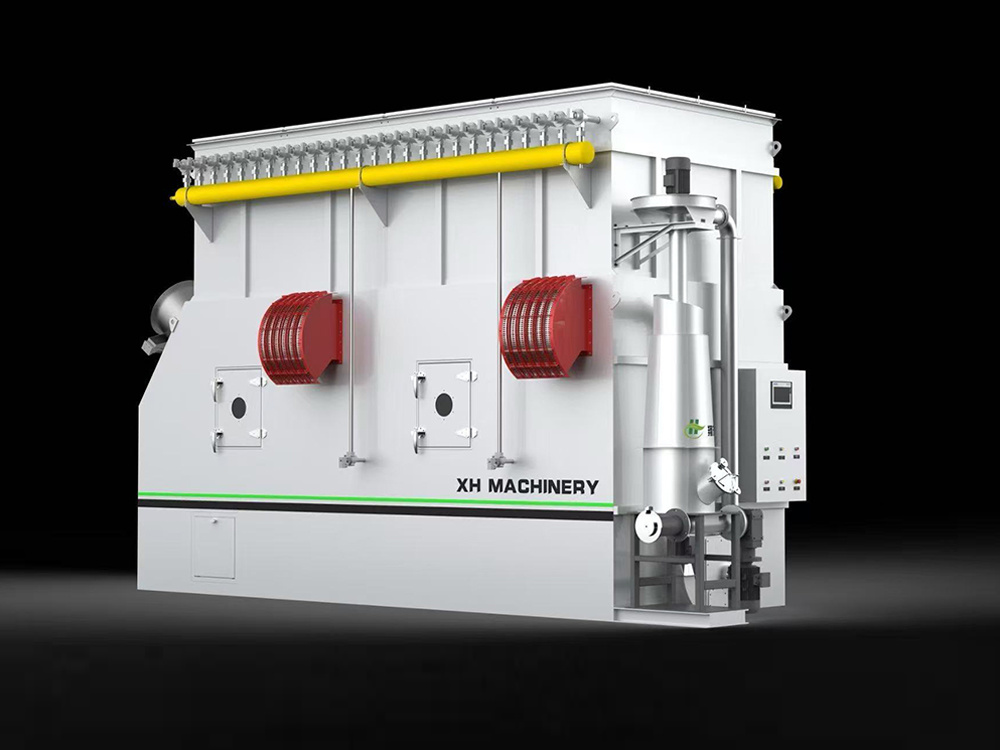

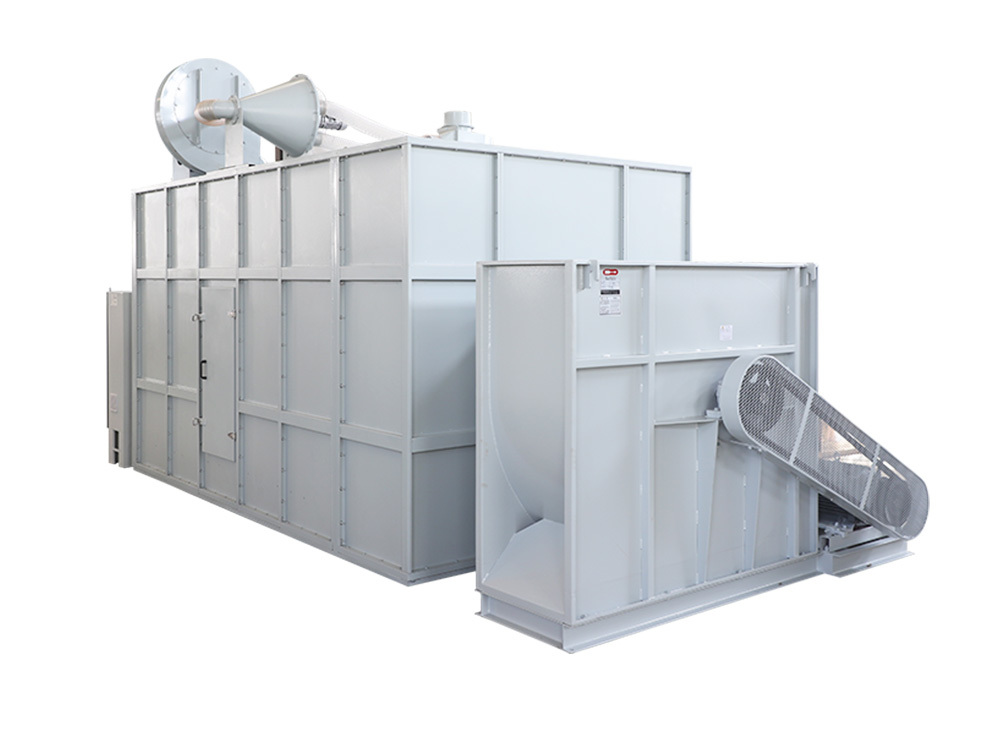

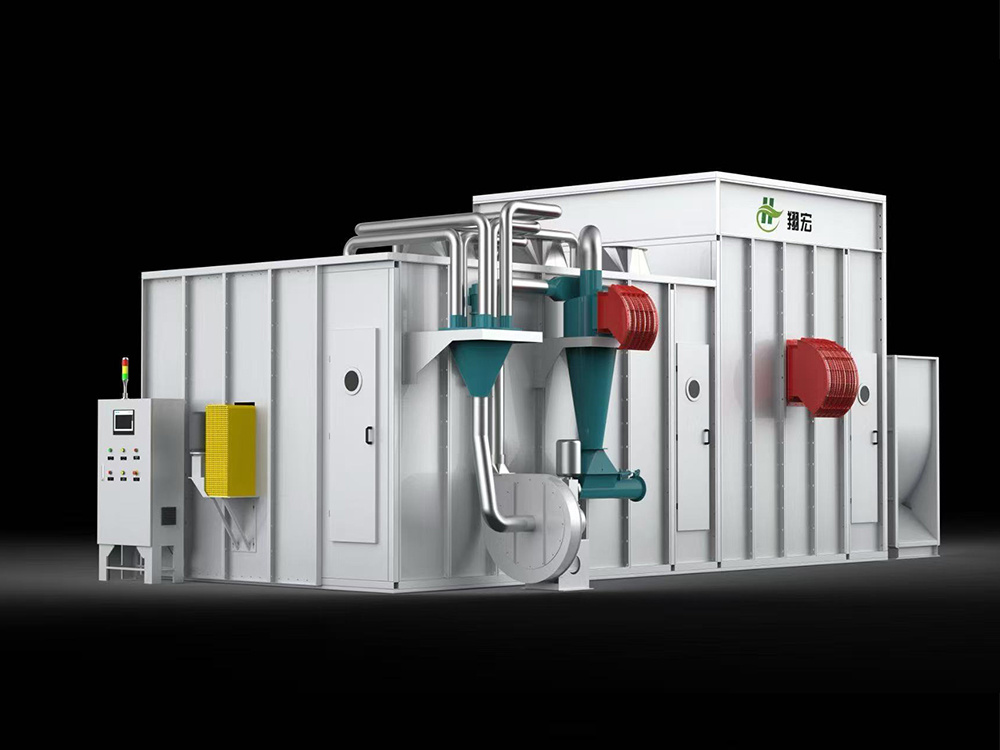

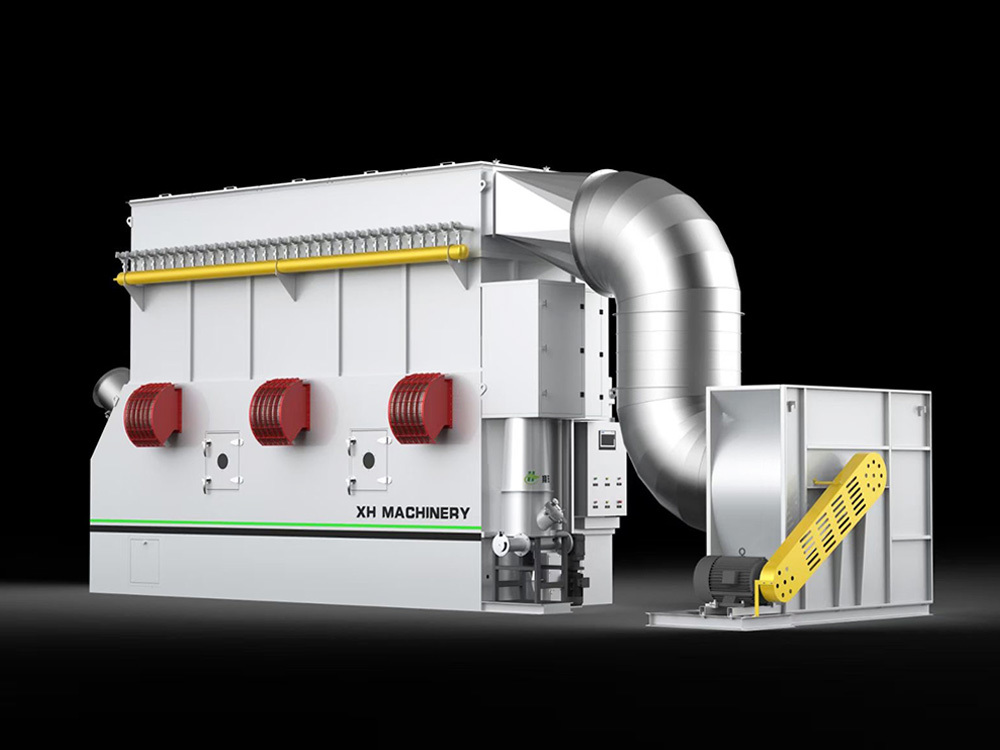

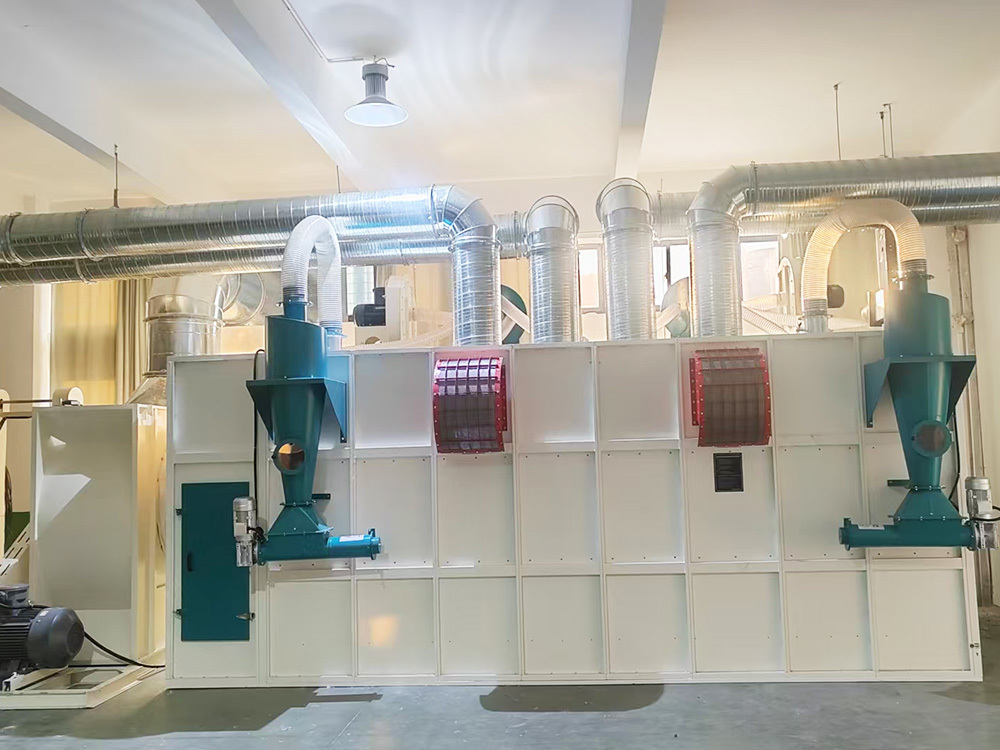

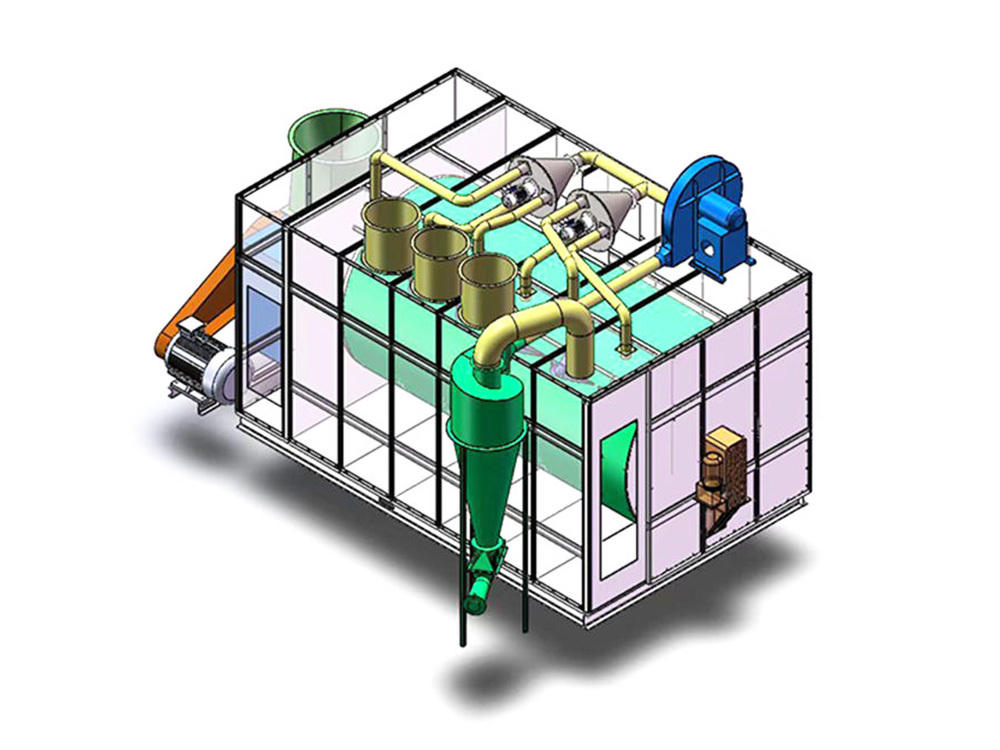

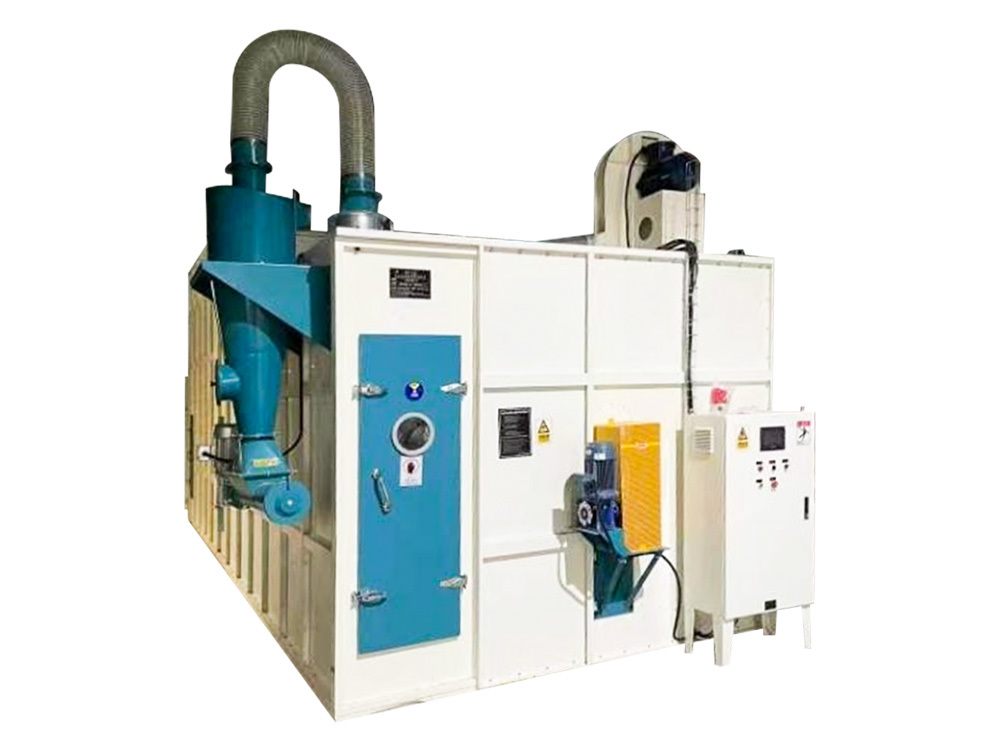

Rotary dust collector

• Dust removal efficiency ≥99.9%; • Strong adaptability, can handle various dusts, and can adapt to different production environments; • Multi-layer filtration structure, more efficient and thorough filtration; • Negative pressure centrifugal force assisted dust removal, large air volume processing; Customizable, air volume up to 800000m³/h; • The equipment operates continuously and stably, maintaining a continuously stable wind pressure and air volume; • Relatively simple structure, easy maintenance, easy replacement of wearing parts, simple ash cleaning method; • High safety performance, no sparks generated; • Widely used in hygiene products, printing and papermaking, clothing and other industries; • According to the workshop needs, a secondary filtration, clean air return air, and heating system can be added; • Independently developed dust pressing and recycling system.

Category:

Product Inquiry:

18952696708

Leave a Message

Dust Filter System Parameter Table

Equipment Model/Number	XHGT-15-3	XHGT-15-4	XHGT-15-5	XHGT-15-6	XHGT-15-7	XHGT-15-8	Remarks
Equipment Type	Dust Collector	Dust Collector	Dust Collector	Dust Collector	Dust Collector	Dust Collector	Customizable, maximum air volume up to 60000m³/h
Dust Removal Efficiency	97%	97%	97%	97%	97%	97%
Number of Suction Nozzles	3	4	5	6	7	8
Air Volume Processed	20000m³/h	28000m³/h	35000m³/h	45000m³/h	50000m³/h	60000m³/h
Fan Model	SFF232-9E-18.5kw	SFF232-10E-18.5kw	SFF232-10.2E-22kw	SFF232-11.2E-30kw	SFF232-11.2E-37kw	SFF232-12.5E-37kw
Installed Capacity	30kw	30	33	41kw	48kw	59kw
Servo Motor (Yes/No)	No	No	No	No	No	No
Dust Compaction (Yes/No)	Yes	Yes	Yes	Yes	Yes	Yes
Negative Pressure Fan (Yes/No)	Yes	Yes	Yes	Yes	Yes	Yes
Installation Dimensions (Length x Width x Height)	4780x2660x3400	5470x2880x3400	6100x2880x3400	6960x3130x3400	7590x3130x3400	8250x3650x3400
Negative Pressure Fan Dimensions (Length x Width x Height)	2660x1110x1710	2880x1170x1880	2880x1170x1880	3130x1300x2030	3130x1300x2030	3650x1330x2220
Applicable Hygiene Product Equipment (Pants Baby Pants Sanitary Napkins Nursing Pads)	Sanitary Napkins	Sanitary Napkins	Baby Pants	Pants	Pants	Pants

Dust Filter System Parameter Table

Equipment Model/Number	XHGT-15-3-02	XHGT-15-4-02	XHGT-15-5-02	XHGT-15-6-02	XHGT-15-7-02	XHGT-15-8-02	Remarks
Equipment Type	Dust Collector	Dust Collector	Dust Collector	Dust Collector	Dust Collector	Dust Collector	Customizable, maximum air volume up to 60000m³/h
Dust Removal Efficiency	100%	100%	100%	100%	100%	100%
Number of Suction Nozzles	3	4	5	6	7	8
Air Volume Processed	20000m³/h	28000m³/h	35000m³/h	45000m³/h	50000m³/h	60000m³/h
Fan Model	SFF232-9E-22kw	SFF232-10E-22kw	SFF232-10.2E-30kw	SFF232-11.2E-30kw	SFF232-11.2E-37kw	SFF232-12.5E-37kw
Filter Cartridge Specifications	φ350x750	φ350x750	φ350x750	φ350x750	φ350x750	φ350x750
Number of Filter Cartridges	24	32	40	56	64	72
Installed Capacity	34	34	41	4kw	48kw	59kw
Servo Motor (Yes/No)	No	No	No	No	No	No
Dust Compaction (Yes/No)	Yes	Yes	Yes	Yes	Yes	Yes
Negative Pressure Fan (Yes/No)	Yes	Yes	Yes	Yes	Yes	Yes
Installation Dimensions (Length x Width x Height)	8150x2660x3400	8650x2880x3400	9100x2880x3400	10130x3130x3400	10580x3130x3400	11060x3650x2370
Negative Pressure Fan Dimensions (Length x Width x Height)	2660x1110x1710	2880x1170x1880	2880x1170x1880	3130x1300x2030	3130x1300x2030	3650x1330x2220
Applicable Hygiene Product Equipment (Pants Baby Pants Sanitary Napkins Nursing Pads)	Sanitary Napkins	Sanitary Napkins	Baby Pants	Pants	Pants	Pants
