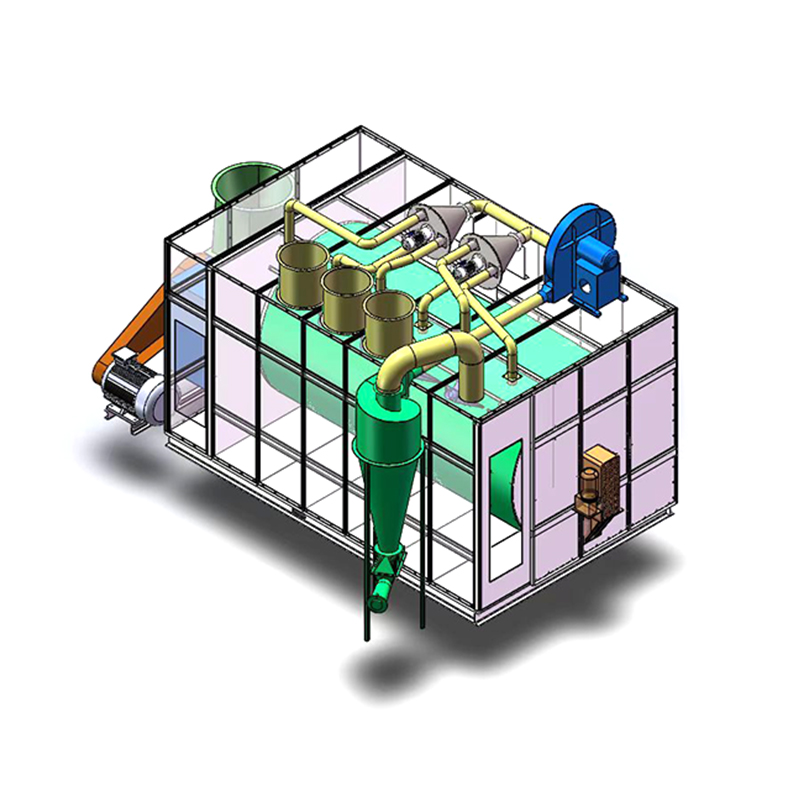

Negative Pressure Drum Dust Collector

The large fan starts a large flow of exhaust, and its air inlet pipe generates negative pressure in the drum and transmits the negative pressure to the vacuum cleaner box. Under the action of this negative pressure, the dusty air in the workshop is sucked through the three air inlet ducts on the upper part of the box; after the dusty air enters the vacuum cleaner box, it moves along the negative pressure path toward the inlet of the large fan. When it moves to the outer filter layer of the drum, it is blocked on its surface. At this time, the suction device for separating dust starts the high-pressure centrifugal fan and at the same time starts the pneumatic actuator. The pneumatic actuator drives the suction port close to the filter layer to suck the attached dust and sends it to the collection device through the pipeline.

Performance characteristics：

1. High dust removal efficiency ≥99.9%；

2. Strong adaptability, can handle a variety of dust, can cope with different production and work environments;

3. Multi-layer filter structure, filter more efficient and thorough；

4. Negative pressure centrifugal force assisted dust removal, treatment of large air volume; Customizable air volume up to 800000m³/h;

5. The equipment runs continuously and stably, maintaining continuous and stable wind pressure and air volume；

6. The structure is relatively simple, easy to maintain, easy to replace wearing parts, and simple cleaning method;

7. High safety performance, no spark generation；

8. Widely used in sanitary products, printing paper, clothing and other industries;

9. According to the actual needs of the workshop, secondary filtration, clean air return air, warming system can be added；

10. Independently developed dust block recovery system.
